FIGURE 3 in Morphological description of immature stages of Trichophoromyia brachipyga (Mangabeira) (Diptera: Psychodidae: Phlebotominae)

Creators

  • 1. Programa de Pós Graduação em Biologia de Agentes Infecciosos e Parasitários, Instituto de Ciências Biológicas, Universidade Federal do Pará, Belém, Pará State, Brazil. & Seção de Parasitologia, Instituto Evandro Chagas, Ananindeua, Pará State, Brazil. & Departamento de Biología, Faculdad de Ciencias, Universidad de Los Andes, Mérida, Venezuela. & yetsenia24@gmail.com; https://orcid.org/0000-0002-5161-1915
  • 2. Programa de Pós Graduação em Biologia de Agentes Infecciosos e Parasitários, Instituto de Ciências Biológicas, Universidade Federal do Pará, Belém, Pará State, Brazil. & Seção de Parasitologia, Instituto Evandro Chagas, Ananindeua, Pará State, Brazil. & These authors contributed equally.
  • 3. Programa de Pós Graduação em Biologia de Agentes Infecciosos e Parasitários, Instituto de Ciências Biológicas, Universidade Federal do Pará, Belém, Pará State, Brazil. & Seção de Parasitologia, Instituto Evandro Chagas, Ananindeua, Pará State, Brazil. & povoamm@gmail.com; https://orcid.org/0000-0003-3517-2227 & These authors contributed equally.

Description

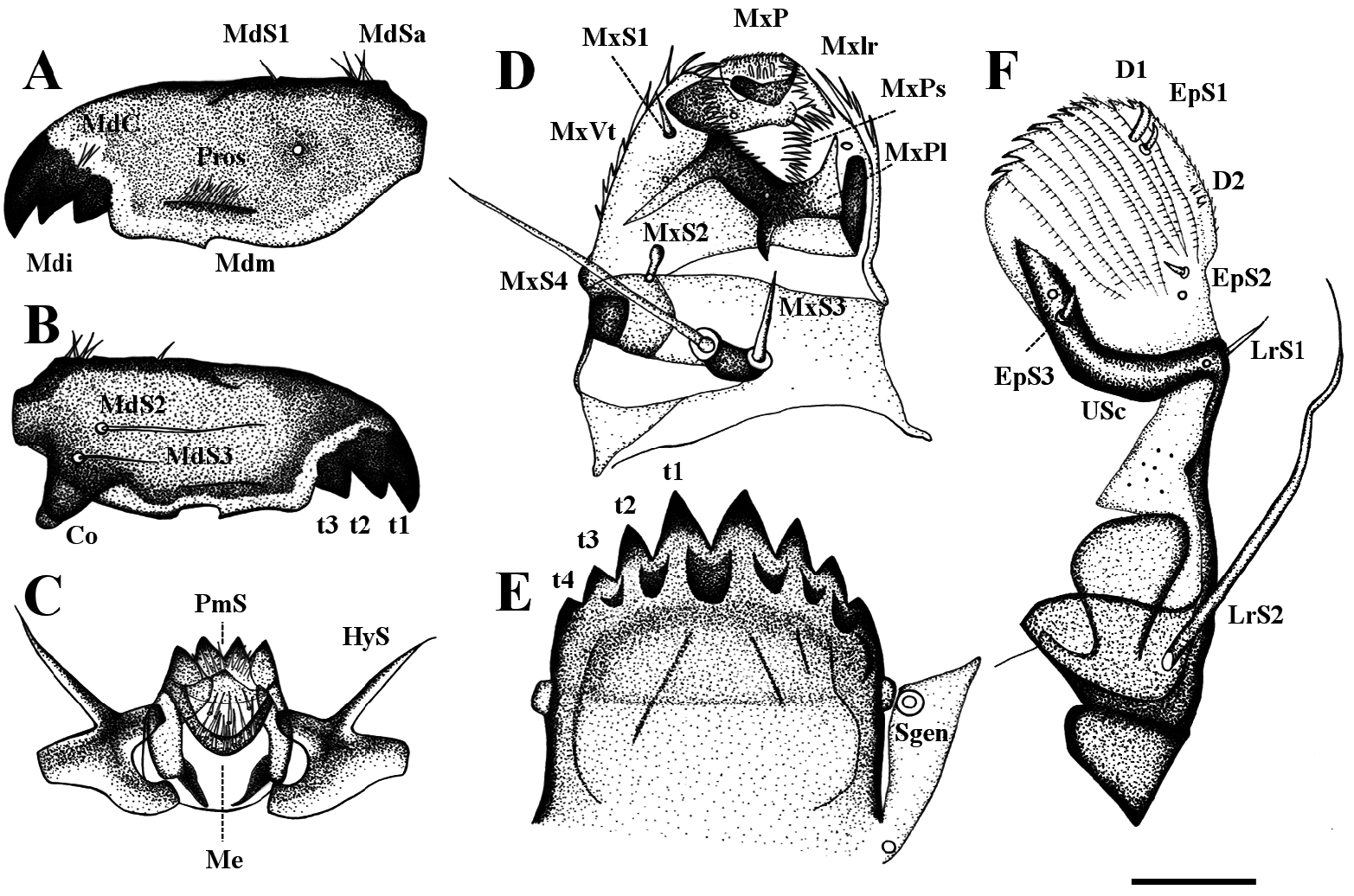

FIGURE 3. Morphology of mouthparts of Trichophoromyia brachipyga fourth-instar larva. A and B: mandible in lateral internal and lateral external view, respectively; C: labium in ventral view; D: maxilla in lateral external view; E: postmentum and subgena in ventral view; F: labrum-epypharynx in lateral view; Co: condyle; D1: apical tooth; D2: Middle tooth; Ep: epypharynx; EpS1: epypharynx apical seta; EpS2: epypharynx basal seta; EpS3: U-sclerite seta; HyS: suspensorium of hypopharynx; Lr: labrum; LrS1: distal labrum seta; MdC: mandible comb-like; Mdi: incisor lobe; Mdm: molar lobe; MdSa: spiny area; MdS1- MdS3: mandible setae; Me: mentum; Mxlr: lacinia maxillary rake; MxS1-MxS4: maxilla setae; MxP: maxillary palpus; MxPl: maxillary plate; MxPs: maxillary palpus microtrichia; MxVt: ventral tooth; Pros: prostheca; PmS: premental sclerite; Sgen: subgena; t1-t3: teeth of incisor lobe; t1-t4: teeth of the postmentum; USc: U-sclerite; bar = 30μm.

Notes

Published as part of Uzcátegui, Yetsenia Del Valle Sánchez, Santos, Thiago Vasconcelos Dos & Póvoa, Marinete Marins, 2021, Morphological description of immature stages of Trichophoromyia brachipyga (Mangabeira) (Diptera: Psychodidae: Phlebotominae), pp. 271-284 in Zootaxa 5057 (2) on page 274, DOI: 10.11646/zootaxa.5057.2.7, http://zenodo.org/record/5588166
