FIGURE 9 in The megisthanid mites (Mesostigmata: Megisthanidae) of Australia
Creators
Description

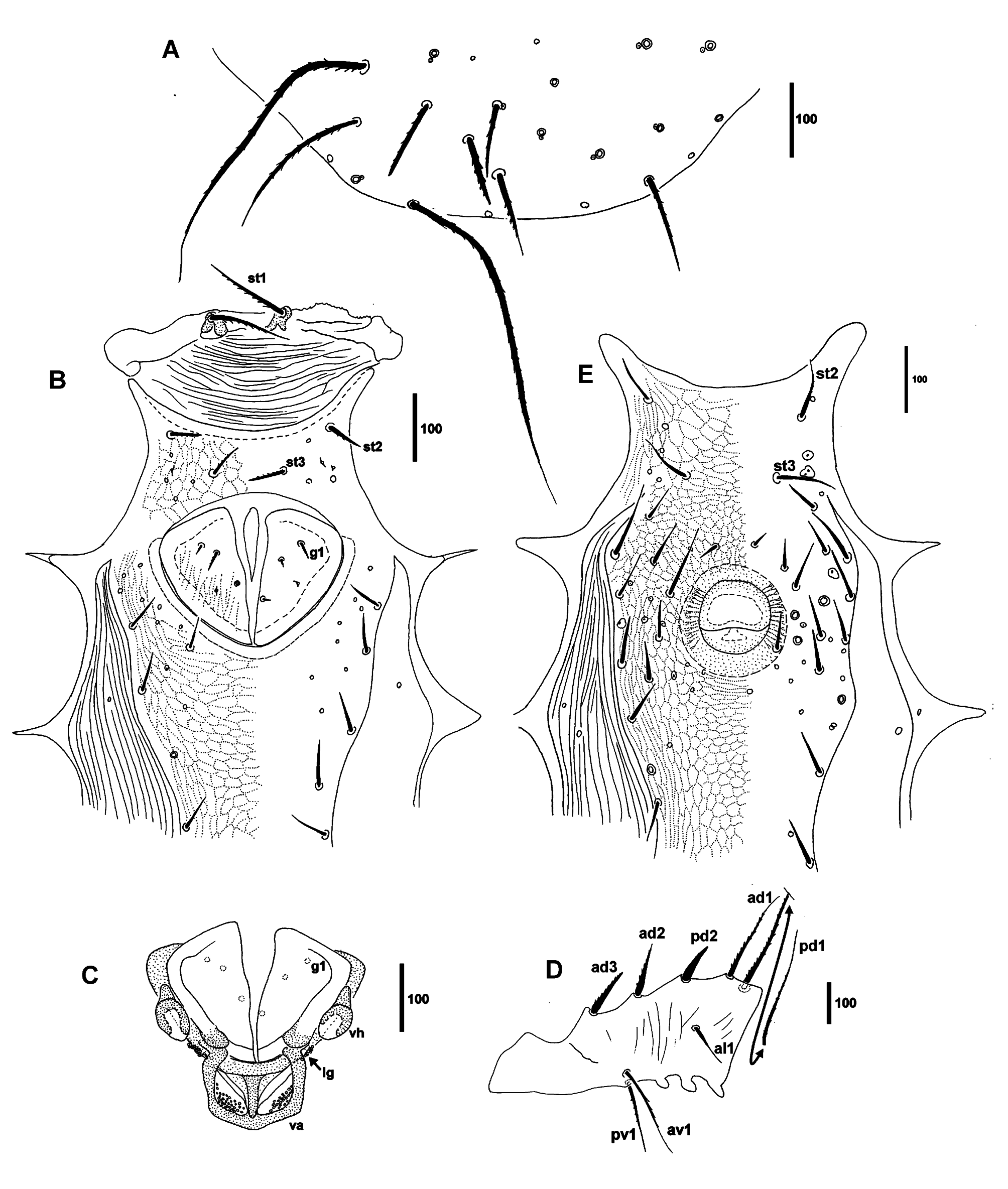

FIGURE 9. Megisthanus simoneae sp. nov. (A) female, posterior dorsal shield (several setae broken); (B) female, sternogenital region; (C) internal genitalia; (D) female, femur IV; (E) major male, sternogenital region. Abbreviations: g1 = anterior pair of genital setae; lg = latigynal remnant; mg = mesogynal shield; va = vaginal arms; vh = vaginal heads.
Notes
Published as part of Seeman, Owen D., 2019, The megisthanid mites (Mesostigmata: Megisthanidae) of Australia, pp. 1-40 in Zootaxa 4563 (1) on page 19, DOI: 10.11646/zootaxa.4563.1.1, http://zenodo.org/record/2600858
