IMPMCT: A Dataset of Integrated Multi-source Polar Mesoscale Cyclone Tracks
Creators
Description
Short description
IMPMCT combines vortices tracking algorithms from ERA5 reanalysis with deep learning-based detection of cyclonic cloud features in Advanced Very High-Resolution Radiometer (AVHRR) infrared imagery, while incorporating near-surface wind matching by Advanced Scatterometer (ASCAT) and Quick Scatterometer (QUIKSCAT) measurements. The dataset contains 1,110 vortices tracks, 16,001 cyclonic cloud features, and 4,472 wind speed records, with multi-dimensional attributes such as cloud morphology, core wind speed, and environmental advection wind speed.
- Temporal Coverage**: February 2001 – April 2024.
- Spatial Coverage**: 50–85°N, 40°W–80°E.
Dataset Structure
1、cyclone_IR_images
- Contains 1,110 subfolders named by cyclone IDs (matching track IDs).
- Each subfolder stores infrared images of cyclonic cloud features.

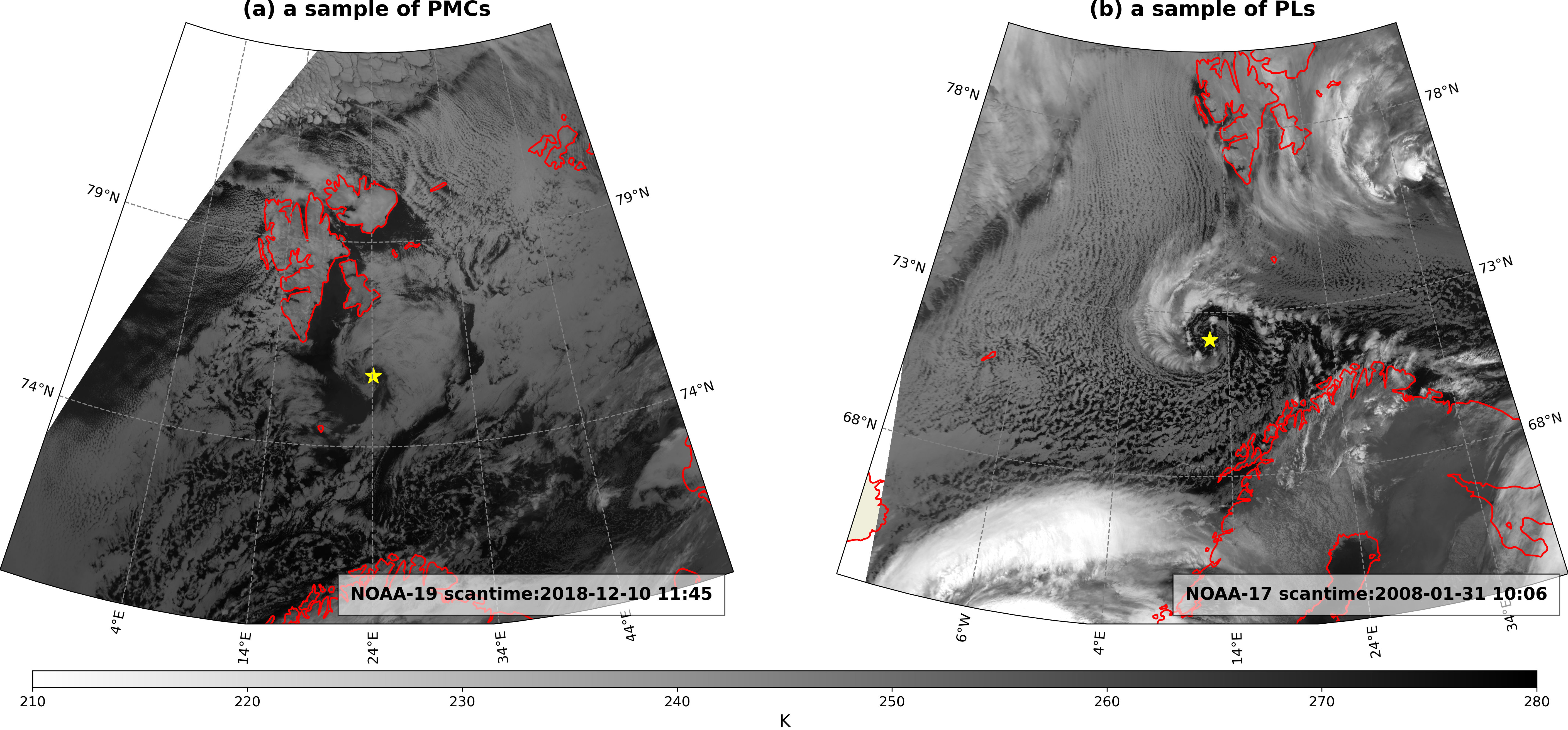

- These images are generated in the same way as the VCI image (see arcticle),but are centered on cyclone centers, with wind vectors overlaid when available.
- Naming convention: `{ID}_{step}.png` (e.g., `11_3.png`), where step denotes the temporal sequence.
- Brightness temperature mapped to grayscale (210–280 K), wind speed mapped to 0–25 m/s (examples in auxiliary folder).
2、auxiliary_information
Color mapping examples
- Mapping_of_brightness_temperature_to_grayscale.png
- Wind_speed_mapping.png
Vortex evolution logs
- split_IDs.txt: IDs of vortices formed via splitting.
- merge_IDs.txt: IDs of vortices terminated via merging.
- merge_example.png、split_example.png (illustrating merging/splitting processes).
3、Data Tables
ERA5_tracks.xlsx
| Variables | Abbreviations | Units | Notes |
| ID | ID | Track identifier | |
| Longitude | lon | °E/°W | Vortex center longitude |
| Latitude | lat | °N | Vortex center latitude |
| Time | time | UTC | Timestamp of track point |
| Smoothed relative vorticity at 850hPa | ζ_smth850 | 10^-4 s^-1 | 850 hPa relative vorticity uniformly smoothed over a 60 km radius at the vortex center |
| Vorticity equivalent radius | r | km | Equivalent circular radius of the vortex area |
| Sea level pressure center value | slp | hPa | Minimum sea-level pressure within 150km of the vort center |
| Sea level pressure center longitude | slp_lon | °E /°W | Longitude of the matched SLP minimum cente |
| Sea level pressure center latitude | slp_lat | °N | Latitude of the matched SLP minimum center |
note:The track with ID 399 differs by 3 time steps, which is connected in the cloud image but disconnected in ERA5 data
cyclone_infos.xlsx
| Variables | Abbreviations | Units | Notes |
| ID | ID | Track identifier (corresponds to vortex track) | |
| Sequence number | step | Cyclone image step at temporal sequence | |
| Longitude | lon | °E/°W | Cyclone center longitude |
| Latitude | lat | °N | Cyclone center latitude |
| AVHRR scanning time | time | UTC | Average time of AVHRR scanning within 50km of the cyclone center |
| Width of bounding box | width | km | Shorter side of the oriented bounding box circumscribing the cyclone |
| Length of bounding box | length | km | Longer side of the oriented bounding box circumscribing the cyclone |
| AVHRR satellite | AVHRR_satellite | Satellite used to draw the AVHRR infrared image | |
| Scatterometer scanning time | wind_time | UTC | Average time of wind scatterometer scanning within 50km of the cyclone center |
| Maximum near-surface wind speed associated with the cyclone | max_wind | m/s | Maximum near-surface wind speed within a search radius of the cyclone center |
| Effective ratio of wind speed | valid_fraction | Proportion of available wind speed data within a search radius |
Files
auxiliary_information.zip
Files
(6.1 GB)
| Name | Size | Download all |
|---|---|---|
|
md5:944eec517019a278bcca9a85e44693da
|
18.5 MB | Preview Download |
|
md5:1fc5fbea4f7a9148d514cd5f671931ff
|
952.8 kB | Download |
|
md5:5357fadfc76f730883d2e2526265808b
|
722.4 MB | Preview Download |
|
md5:f9e8e37a78951f929635e276e4a938ae
|
1.0 GB | Preview Download |
|
md5:42567baffabbc7cf8c968ace474fabd0
|
1.1 GB | Preview Download |
|
md5:8ba104631aeafda5917e021f213142f9
|
1.3 GB | Preview Download |
|
md5:979c7abead6d23cb4595277bcfd3af80
|
2.0 GB | Preview Download |
|
md5:5f129c77baf48a3ab6a570c52b5883fc
|
2.1 MB | Download |
|
md5:cb4bc0d96e97024eec9041a15fab7e70
|
7.7 MB | Preview Download |
|
md5:d75b4184fa3d3e143819d7a02912fbb4
|
4.3 kB | Preview Download |
Additional details
Related works
- Is supplement to
- Dataset: 10.5194/essd-2025-186, (DOI)
Software
- Repository URL
- https://github.com/thebluewind/IMPMCT
- Development Status
- Active
