Gyroscopic Flight Control System and prototype drone

The Gyroscopic Flight Control System enables an aircraft to maneuver without traditional aerodynamic control surfaces by using high-speed spinning rings (gyros) to generate torque through gyroscopic precession. When a spinning ring is tilted by an actuator, the angular momentum of the ring shifts, producing a reactive torque perpendicular to the tilt—this force is used to control pitch, roll, and yaw. By precisely adjusting the tilt angles of multiple concentric, counter-rotating rings, the system creates smooth and responsive control in all axes, even while hovering. The control forces are governed by the equation τ=I⋅ω⋅Ω⋅sin⁡(θ)\tau = I \cdot \omega \cdot \Omega \cdot \sin(\theta)τ=I⋅ω⋅Ω⋅sin(θ), where torque (τ\tauτ) is proportional to the ring's inertia, spin rate (ω\omegaω), tilt speed (Ω\OmegaΩ), and tilt angle (θ\thetaθ). This allows for extremely agile and stable maneuvering without the need for airflow or surface deflection.

Objective

Create a drone-sized prototype capable of in-place hover and maneuvering without control surfaces or directional thrust, using only gyroscopic precession for control.

COMPONENT BREAKDOWN

1. Frame

• Type: Custom X-frame

• Material: Carbon fiber or G10 plates

• Key Parts:

  • Top X-frame (arms + center cutout)

  • Bottom reinforcement plate

  • Stack columns or standoffs

  • Motor mounts

2. Lift System

• Motors: 4x brushless (1000–1300kV)

• Props: 4x 10" carbon fiber props

• ESCs: 4x 40A BLHeli_32

3. Gyroscopic System

• Rings: 3 concentric carbon or aluminum rings

• Motors: 3x high-RPM inrunners (15,000+ RPM)

• Actuators: 6x high-speed servos (2 per ring axis)

• Mount Base: Custom gyro mounting plate (SVG provided)

• Reinforcement: Bottom plate supports cage structure

4. Control Electronics

• Flight Controller: Pixhawk or STM32-based custom FC

• Custom MCU: For ring precession calculation & actuator control

• IMU: MPU6000 or equivalent

5. Power

• Battery: 6S 22.2V 5000mAh LiPo

• PDB: Power Distribution Board for ESCs and logic

BUILD INSTRUCTIONS

Stage 1: Frame Assembly

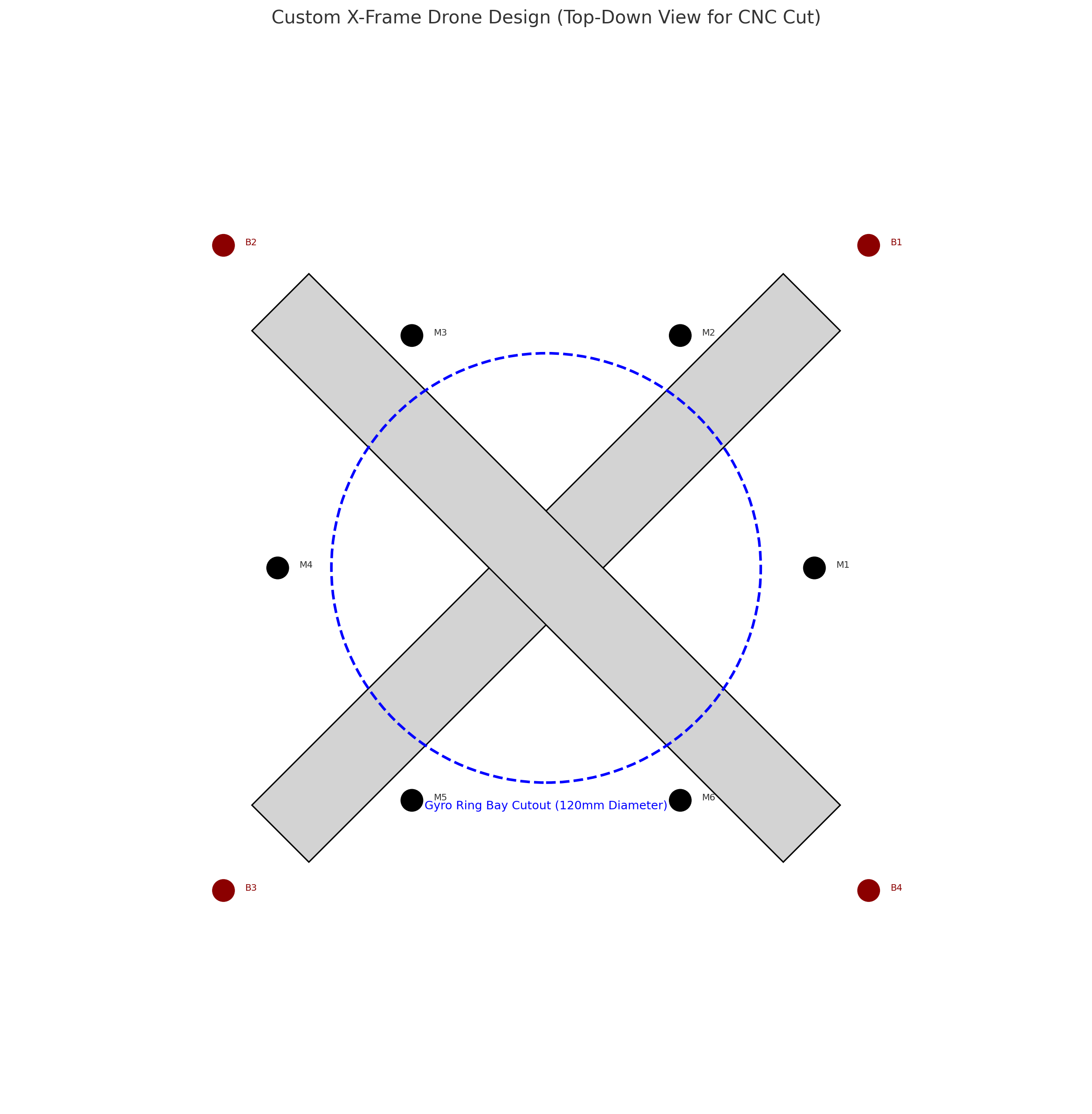

1. Cut the X-frame top plate (use Custom_X_Frame_Drone.svg).

2. Mount arms and install motor brackets.

3. Install bottom reinforcement plate (Bottom_Reinforcement_Plate.svg) using 4 outer bolt points and standoffs.

Stage 2: Lift Motor Integration

1. Mount 4 brushless motors to arm ends.

2. Attach props (2 CW, 2 CCW).

3. Secure ESCs along arms.

4. Route power and signal wires to PDB.

Stage 3: Gyro Assembly

1. Cut and mount the gyro base plate (Gyro_Mount_Plate.svg) on top of the bottom reinforcement layer.

2. Install bearings in 3 ring-axis support holes.

3. Mount rings:

   • Inner: Spins CW

   • Middle: Spins CCW

   • Outer: Spins CW

4. Attach inrunner motors to each ring.

5. Attach actuators to outer edge of each ring at 6 locations (distribute evenly).

6. Wire actuators to the MCU.

Stage 4: Electronics

1. Mount Pixhawk or STM32 FC on vibration-damped foam.

2. Mount custom MCU and IMU near gyro core.

3. Connect ESCs and actuators.

4. Mount battery and wire into PDB.

5. Install telemetry module if needed.

Stage 5: Software & Testing

1. Load firmware that disables ESC stabilization—lift only, no yaw/pitch/roll from props.

2. Write or upload control logic that:

   • Reads input or position error

   • Calculates required ring tilt

   • Activates actuator tilts to induce precession

3. Perform ring spin-up tests.

4. Test actuator tilt + precession response on tethers or static lift stand.

5. Lift test: hover with no stick input.

6. Maneuver test: command pitch/roll/yaw from gyro ring tilts only.

DEMO GOALS

• Hover stability using no control surfaces

• Show controlled pitch, roll, yaw from gyro only
