Published February 24, 2025
| Version v1
Figure
Open
FIGURES 71–80 in Morphology of larvae and pupae of four species of Neotropical Acanthocinini (Cerambycidae, Lamiinae)
- 1. Museu de Zoologia da Universidade de São Paulo, Av. Nazaré, 481 - Ipiranga, 04263-000, São Paulo, SP, Brasil
- 2. Laboratório de Invertebrados - LABIN, Instituto de Ciências Exatas e Naturais - ICEN, Universidade Federal de Rondonópolis - UFR, Av. dos Estudantes, 5055 - Cidade Universitária, 78736-900, Rondonópolis, MT, Brazil
Description

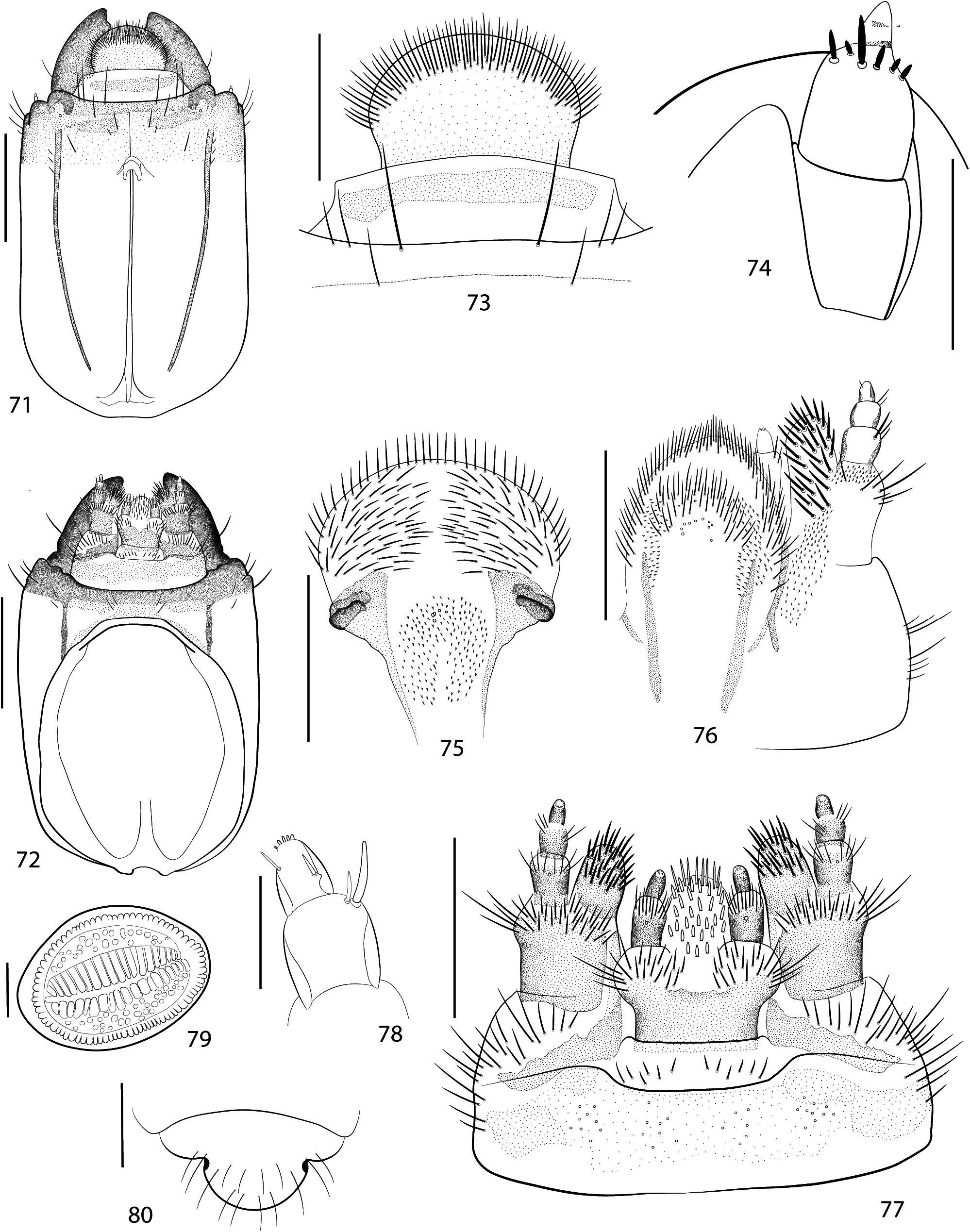

FIGURES 71–80. Xylergatoides asper (Bates, 1864). Larva. 71–72, head (dorsal, ventral); 73, clypeus and labrum; 74, antenna (dorsal); 75, epipharynx; 76, maxilla and labium (dorsal); 77, maxillae and labium (ventral); 78, maxillary palpus (dorsal); 79, thoracic spiracle; 80, abdominal apex (dorsal). Scale bars = 0.5 mm, except figs 71, 72, 80= 1.0 mm; 75, 78, 79 = 0.1 mm.
Notes
Published as part of Casari, Sônia A., Biffi, Gabriel & Nascimento, Francisco Eriberto L., 2025, Morphology of larvae and pupae of four species of Neotropical Acanthocinini (Cerambycidae, Lamiinae), pp. 325-344 in Zootaxa 5590 (3) on page 339, DOI: 10.11646/zootaxa.5590.3.2, http://zenodo.org/record/14953132
