Published January 27, 2025
| Version v1
Figure
Open
Figure 1 in A new species of the callianassid ghost shrimp genus Cheramoides Sakai, 2011, from Brazil (Crustacea: Decapoda: Axiidea)
- 1. Facultad de Ciencias, Departamento de Biología, Centro de Estudios Marinos y Limnológicos, Universidad de Tarapacá - UTA, Arica, Chile;
- 2. Museu de Oceanografia Petrônio Alves Coelho, Departamento de Oceanografia, Universidade Federal de Pernambuco (UFPE), Recife, Brazil
Description

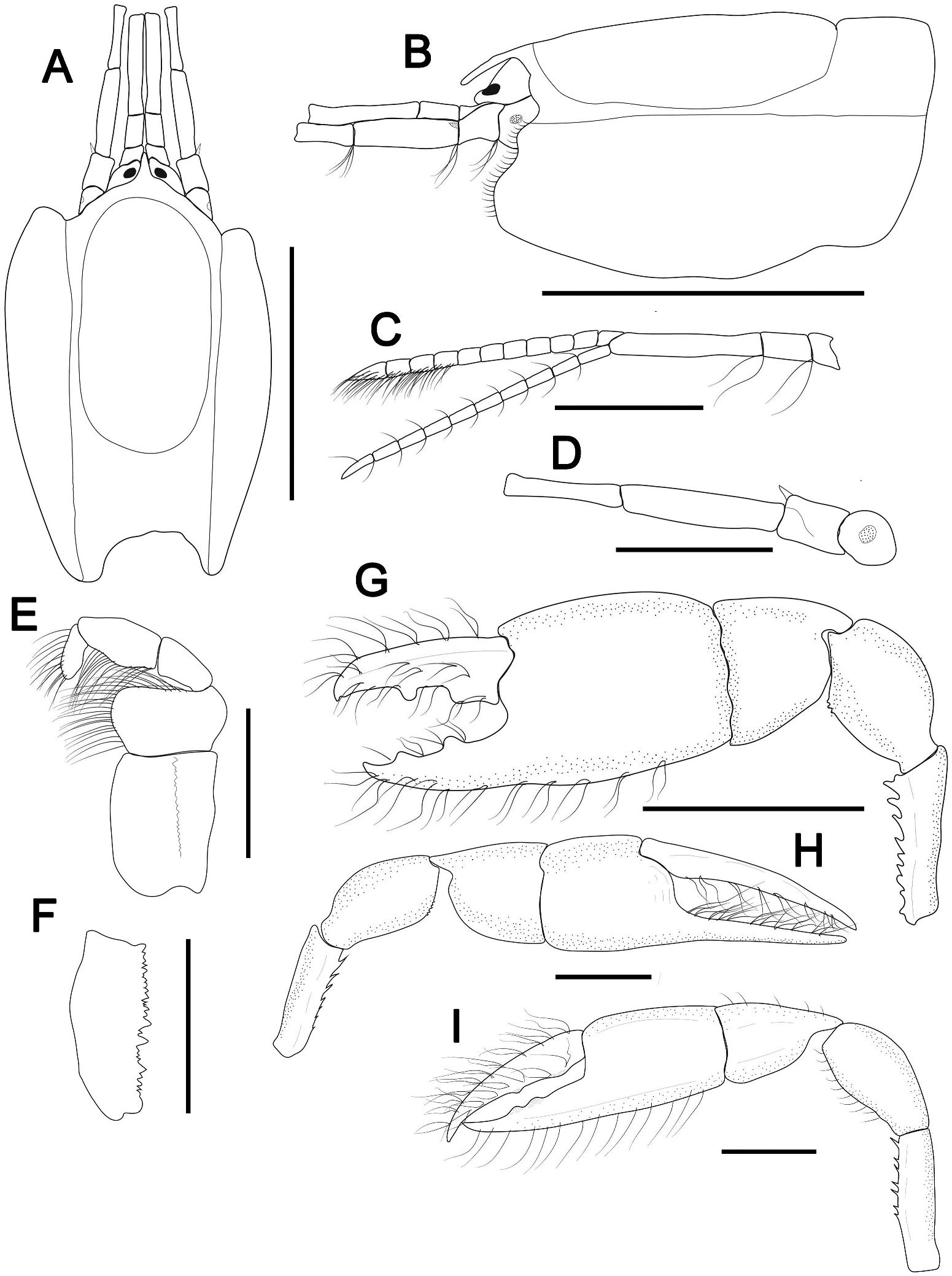

Figure 1. Cheramoides samba sp. n. (A–H), Holotype, male (cl: 3.2 mm), MOUFPE 8413; (I) paratype, female (cl: 3.6 mm), MOUFPE 21626. (A) Carapace and cephalic appendages, dorsal view; (B) same, lateral view; (C) left antennule, lateral view; (D) left antenna, lateral view; (E) left maxilliped 3, internal surface; (F) same, detail of crista dentata on ischium, dorsomesial view; (G, H) major and minor cheliped, respectively, lateral view; I, minor chelipeds, lateral view. Scale bars: A, B, G = 2 mm; D = 0.5 mm; E, F = 1.0 mm; H, I = 1 mm.
Notes
Published as part of Hernáez, Patricio & Souza-Filho, Jesser F., 2025, A new species of the callianassid ghost shrimp genus Cheramoides Sakai, 2011, from Brazil (Crustacea: Decapoda: Axiidea), pp. 241-252 in Journal of Natural History 59 (5-8) on page 244, DOI: 10.1080/00222933.2024.2437498, http://zenodo.org/record/14765156
